Portable Q switched nd yag laser tattoo removal body tattoo removal
pigmentation removal machine price
Brief Introduction

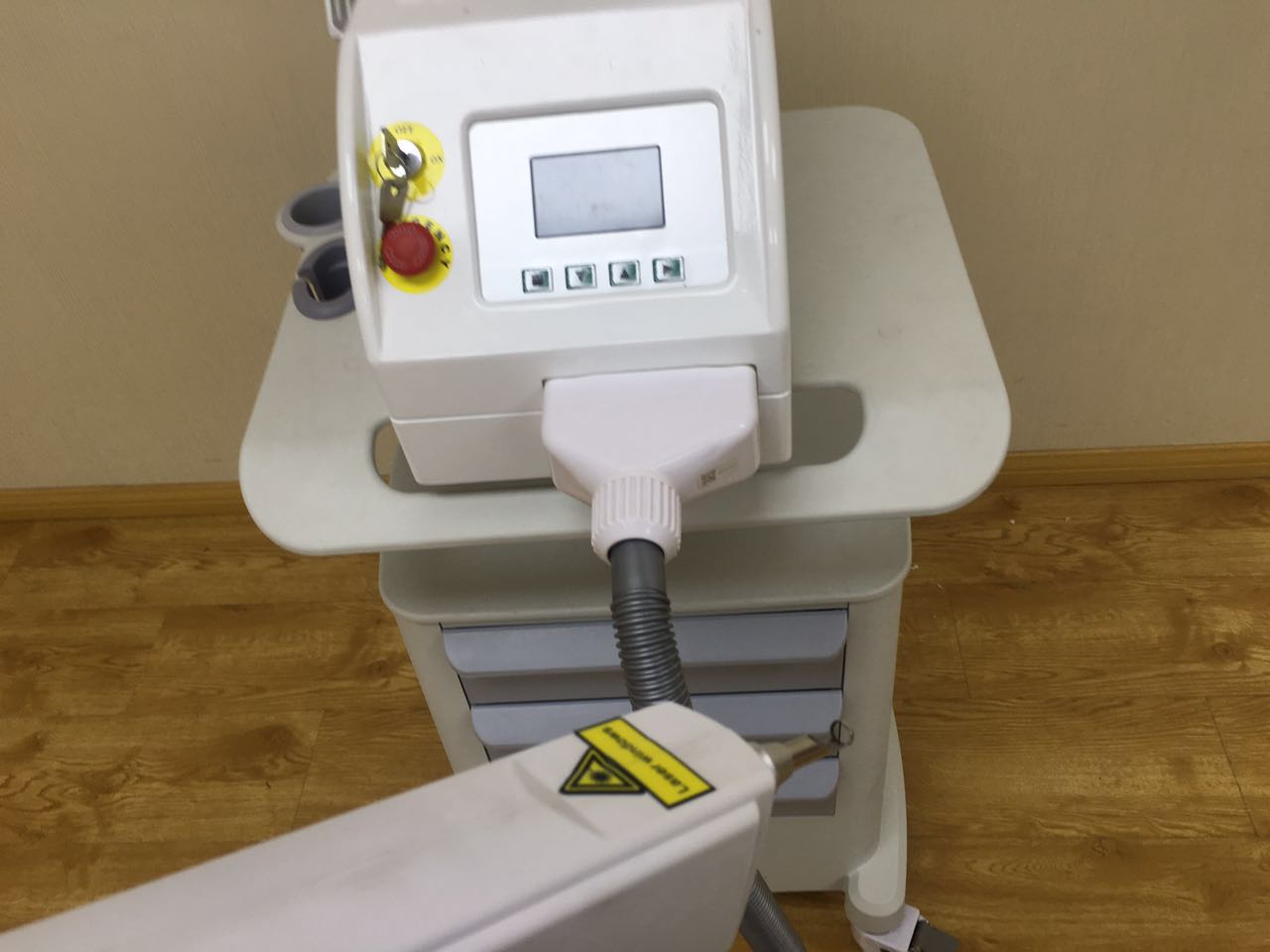

Monaliza M4C-2 system contains optical-circuit system in the
treatment handle.
Electric- circuit system, computer system and cooling system are
involved in the console.
1. Safe and efficient treatment
Normal tissues under the skin barely absorb the Laser energy at the
wave lengths of 1064nm and 532nm. Therefore laser won't damage
normal skin. No scars would be left. Automatic protect device of
water-level and water-temperature makes treatment safe, efficient.
It adopts magnetic pump instead of immersible pump.You can treat
customers with it without pause to coll the machine.
2. Portable and easy operation
User friendly LCD touch screen makes operation easily. Its
collimator makes the treatment safe, accurate and efficient.
3. Skin rejuvenation
There is a SR treatment head for pores-shrinking, skin lightening,
and whitening etc.
Treatment Principle
Therapy of epidermis and dermis pigmentation---Utilizing the
explosive effect of the Nd:YAG lazer, the lazer permeates the
epidermis into the dermis which includes an amount of pigment mass,
which absorbing such high energy in nanosecends will swell quickly
into small pieces and could be eliminated through metabolic system.
Therapy of the dilatation of capillary vessel—Utilizing the heat
effect of the Nd:Yag Lazer, the lazer is aborbed by hemachrome in
the capillary vessel, then the capillary vessel become blocked and
disappear.
Treatment Traits
No harm to the hair follicle and normal skin, leaving no scar
Short treatment time and easy operation
High quality controlled solid-state laser according to
international standard
Tiny sense of pain, Anesthesia is unnessary in most cases
No downtime and interruption of routine activities, no side
effects.
Operation
First fill the tank with distilled water or pure water (mineral
water is not permitted) to 4/5 of the tank, which can be observed
from the window in the profile of the console. After that if the
screen no display, pls add a little more water till it arrive the
tip. But don‟t drown out. Turn on the system, and when the water
level descends, refill it again to 4/5 of the tank.
Change the non-hole stopper with the hole stopper.
The adoption of 1064nm transformer or 532nm transformer is decided
by the treatment.
Warning:Any operation not followed instructions of the manual may
cause radiation hazard. Caution:The smoke and chipping produced
during the course of treatment may be biological grain.
Usage of the transformer with wavelength of 532nm
Take off the transformer with wavelength of 1064nm and change with
the transformer with wavelength of 532nm. Revolve the transformer
suitably and make the standard lines on the transformer and the
handle on the same position to get perfect output.
Caution: The light with wavelength of 532nm is harmful to skin.
Please read Annex 2 before operation.
Ordering accessory:
| 1 | Main body |
| 2 | Protective glasses |
| 3 | Foot switch |
| 4 | Power supply wire |
| 5 | Power supply key |
| 6 | Insurance cube |
| 7 | Eyelid board |
| 8 | Instruction manual |
| 9 | Guarantee card |
| 10 | Product certificate |
| 11 | Transformer with wavelength of 532nm |
| 12 | Water stopper |
| 13 | Interlock plug |
| 14 | Safety marks |
