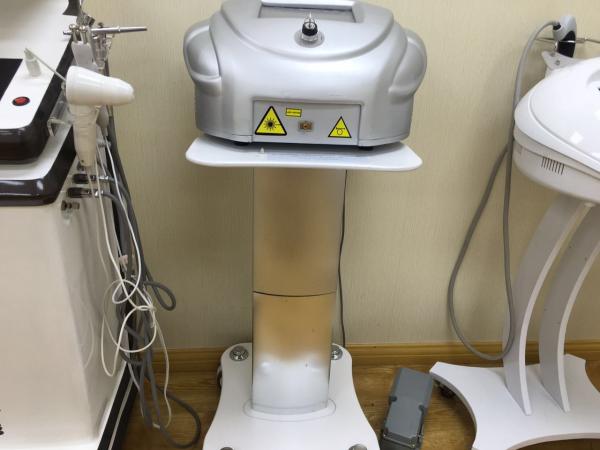

980nm Mini RF Vascular Removal Machine/Veins Removal Machine
portable use
Product Introduction
The latest Redless Diode 980nm Laser Therapy System is able to
focus laser beams on a scope of 0.2mm diameters by adopting 980nm
diode laser combined with fiber coupling output technique. The
system has intelligent control system and precise aiming beam.
Therefore, the accurate laser energy can be safely and effectively
acted on treatment areas for the best curative results.
980nm diode laser vascular removal terapy
980nm diode laser is one latest technology which is safe and
effective treatment for unwanted veins and rosacea . 980 nm diode
laser selectively target problem veins while sparing surrounding
areas. Spider veins are smaller then varicose veins . They appear
to be red, purple, and blue vessels. They are easily visible
through the skin . Spider veins are most often seen on the legs and
face.
Product Advantage
1. 980nm laser optical fiber coupling output technique
2. Small and exquisite handpiece for precise operation
3. Portable and simple to operate
4. Non-contact, non-invasive, no need of special care
5. Quick treatment with outstanding curative effects
6. Clinical Indications
7. Facial vascular
8. Angiotelectasis
Technological Theory
The target substance of vascular disease treatment is oxyhemoglobin
in red blood cell in blood vessel. Wavelength affects laser’s depth
of penetration. Under 1200nm, the longer the wavelength, the deeper
laser can penetrate. Thus, laser wavelength is usually longer in
vascular disease treatment so as to give consideration to target
tissues’ selective absorption and penetrability. Besides, laser
penetrates the epidermis melanin barrier and reaches targeted blood
vessels. Short wavelength laser light will be competitively
absorbed by epidermis melanin, which will cause epidermis injury
and form cicatrix. 980nm Diode 980nm Laser Therapy system takes
advantage of 980nm wavelength laser, penetrating epidermis and
reaching blood vessels. Based on selective photothermolysis theory,
oxyhemoglobin absorbs laser energy and produces thermal energy and
spreads to vascular endothelial cells through conduction mechanism.
In consequence, blood vessel wall is damaged and facial vascular
will be treated.
The major targeted chromophore in facial vascular treatment is
oxyhemoglobin that existing in red blood cell in vessels. According
to the curve of laser absorption by targeted substance (right
picture), oxyhemoglobin shows a much higher absorption interval in
900nm-1000nm. Thus 980nm semi-conductor laser has the ideal
treatment effects for facial vascular removal.
Touch Screen
This device adopts 8 inch touch screen, which is the main interface
for human-machine operation. All parameters setting, system control
or equipment status can be realized through this screen.
Sharp objects are not allowed touch the surface of screen to avoid
being scratched. Various kinds of liquids are not allowed to splash
the touch screen to avoid damage.
Key Switch
Key switch controls on and off of the system. When it is in the
position of ―O‖, the system is inactive state.
Two keys are randomly equipped with the Device. Only when the key
switch is in the position of ―O‖, the key can be pulled out. When
the key switch is in the position of ―|‖, the system of the Device
will be launched and touch screen will display the main interface.
Keys for the switch should be kept and managed by personnel with
professional trainings.
Technical Parameters
| Laser Type | Diode laser |
| Laser Wavelength | 980nm |
| Laser Classification | Class 4 |
| Electric Safety Classification | Type B ClassⅠ |
| Laser Model | Pulser |
| Laser Power | 16W Max. or 10W Max. |
| Laser Energy | 0.1-11.4J or 0.1-6.6J |
| Pulse Width | 10-650ms |
| Pulse Frequency | 1Hz-10Hz |
| Spot Size | φ0.2mm |
| Beam Delivery | Fiber of 200μm, SMA 905 connector |
| LCD screen | 8 inch |
| Aiming Beam | 650 nm, ＜5mW |
| Power supply | 110-240VAC,50-60Hz, 200VA |
| Fuse Protector | F3A,250VAC |
| Dimensions (Length ×Width ×Height) | 325mm×470mm×230mm |
| Net Weight | 8Kg |
