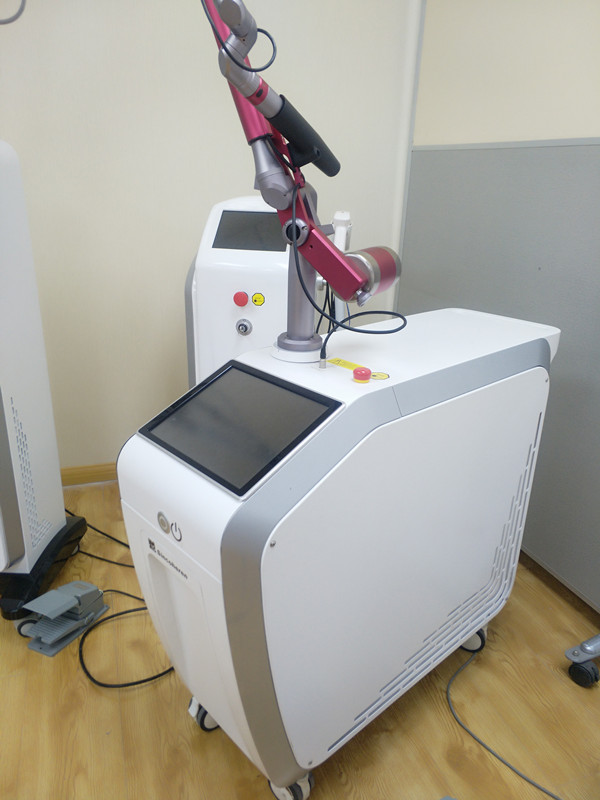

Beijing Sincoheren FDA 1064nm & 532nm Q-Switched ND YAG Laser Pigment and Tattoo Removal Device

Product Description:

1. Pigmented lesion: Yiteng lentigines, Taitian Lentiines, freckles, eyebrow tattoo, body tattoo, lips tattoo.
2. Vascular lesion: Pigment with red, brown, blue and black; vascular expanding

How it works? --- ExQ-Laser

Treatment principle for pigmented dermatosis of Q-Switched Nd:YAG Laser. Therapy system lies in selective photothermolysis with melanin as the chromophore.
Q-Switched Nd:YAG has higher Peak power and nanoseconds-level pulse width. Melanin in melanophore and cuticle formed cells have a short hot relaxation time. It could immediately make small selectively energy absorbed granules (tattoo pigment and melanin) blast without injuring surrounded normal tissues. The blasted pigment granules will be excreted from body through circulatory system.

Main principle:

Firstly, the laser is absorbed by according pigments or ink

Secondly, the pigment mass expands quickly and break into particles.

Thirdly, particles are absorbed by phagocytes, and excreted out by body.

Finally, gradually the pigment becomes lighter and lighter till disappearing.

Curing range Pigment pathology of skin, for instance, the blue, black, red, brown or mixture

of eyebrow lines, eyelid-lines and tattoos, including flecks.

Wavelength range 1064nm 532nm

Energy level: max 1000mJ

Pulse duration: 10ns

Pulse rate: 1, 2, 3, 4, 5 , 6HZ

Size:351*925*775mm (Without optical articulated arm)Weight: 80 kg

Power requirement: 110-240V, 3A, 50-60HZ, 1200VA

Technology Parameters:

Treatment interface:

Treatment Effect :

Hot Selling Products:

Portable nd yag laser tattoo removal machine

755nm/808nm/1064nm Diode laser hair removal machine for body hair removal

Sincoheren is a senior medical and aesthetic equipment supplier founded in 1999.Over the past 19 years,Sincoheren has been focusing on developing various medical and beauty equipment.Our headquarter is in Zhongguancun,Haidian District,Beijing.

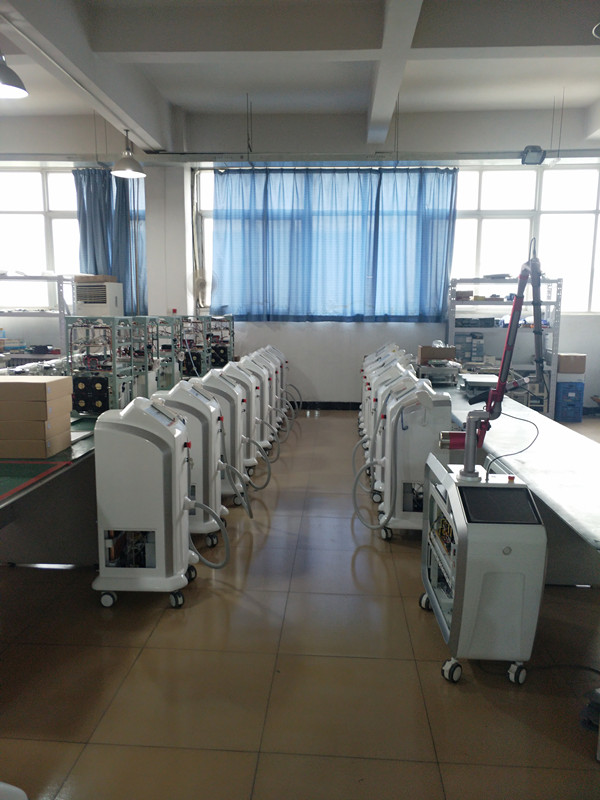

As a high-tech enterprise,Sincoheren possesses the certificate for producing and selling medical instruments and owns independent intellectual property rights.In the company,we set R&D department,sales department,production department,quality inspection department,and general administration department,etc.Sincoheren possesses large plants covering 5000㎡,among which the office buildings take 2/5.We are now staffed by 300 people.Contributed to the powerful technique.abd first-class service,Sincoheren is rapidly tapping into th international market in recent years and our annual sales grows to hundreds of billions yuan.

Successively in the past 19 years,Sincoheren has developed medical laser skin treatment instrument(Nd Yag Laser),intence pulsed light medical device,RF body slimming machine,tattoo laser removal machine,laser hair removal device,fractional CO2 laser equipment,coolplas fat freezing machine,and HIFU machine,Raliable qualitya and considerate after sales service is why we are so popular among partners.

Monaliza Q-switched Nd:YAG laser therapy instrument,one of the brands of Sincoheren,is the first laser skin treatment equipment that gets the CFDA certificate in China.
